THALNA Air Cooled Transmitters
THALNA is the result of years long research in terms of size reduction and structural simplicity. The line perfectly meets the needs of customers that require medium power solutions.
The qualities of compactness and redundancy have been applied to the transmitter design as well as of the cooling system.
The new line maintains the traditional safety features of Itelco transmitters.
01
Reliability & Simplicity
Years of research resulting in robust design with ease of intervention by operators
02
Medium Power Solutions
600W to 2.4kWrms DVB-T/H (up to 6kWps Analog) on single 19" rack
03
Modularity & Scalability
Hot-pluggable amplifier modules for flexible configuration and expansion
04
Competitive Cost
Operating costs reduction, ease of maintenance and spare parts management

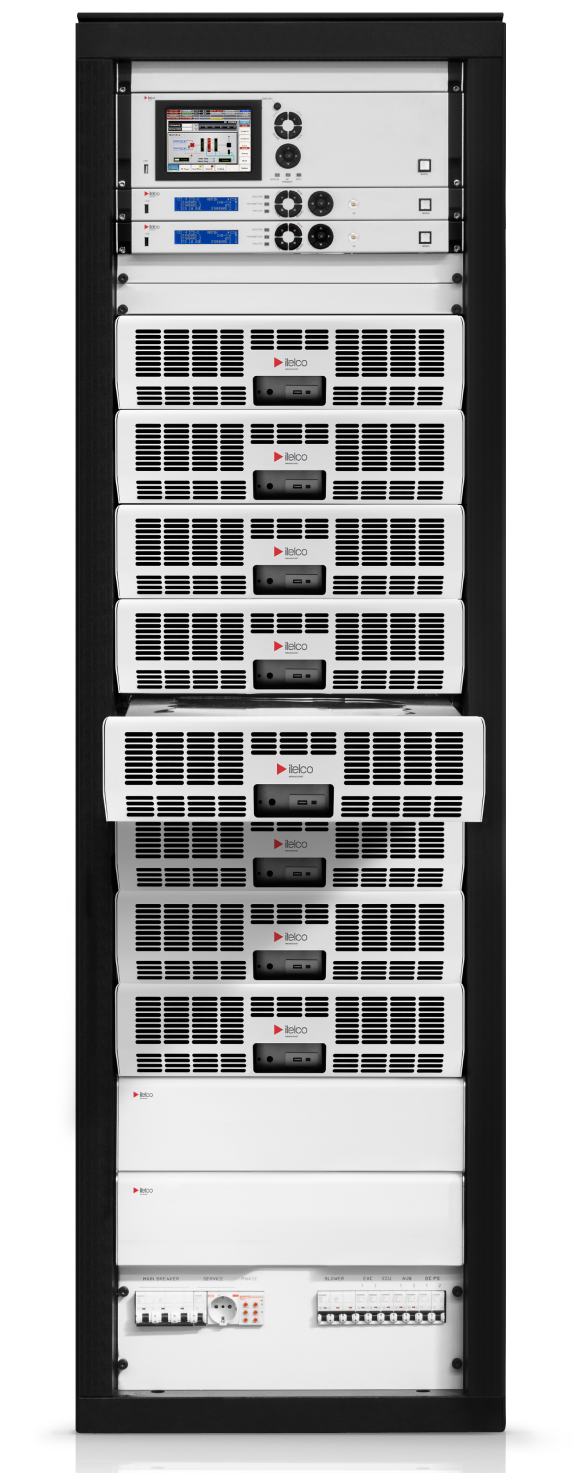

- Central Control Unit (CCU)
- MEX-II Exciter(s)
- H.P.A. Module(s)
- Mains Distribution
- Air Cooled System (2 blowers)
UHF Configuration
| Analog TV Output Power kWp.s. | DVB-T/H, DVB-T2, ISDB-T/Tb, ATSC 3.0, DTMB Output Power kWrms | ATSC Output Power kWrms | Number of Amplifier |
|---|---|---|---|
| 1.6 | 0.6 | 0.8 | 1 |
| 3 | 1.2 | 1.6 | 2 |
| 4.5 | 1.8 | 2.4 | 3 |
| 6 | 2.4 | 3.2 | 4 |
VHF Configuration
| Analog TV Output Power kWp.s. | DVB-T/H, DVB-T2, ISDB-T/Tb, ATSC 3.0, DTMB Output Power kWrms | ATSC Output Power kWrms | DAB Output Power kWrms | Number of Amplifier |
|---|---|---|---|---|
| 1.5 | 0.6 | 0.8 | 0.9 | 1 |
| 3 | 1.2 | 1.6 | 1.8 | 2 |
| 4.5 | 1.8 | 2.4 | 2.7 | 3 |
| 6 | 2.4 | 3.2 | 3.6 | 4 |
