What is a Gap Filler?
TV broadcasting requires optimum and continuous coverage, but coverage holes are often created by mountains or tall buildings.

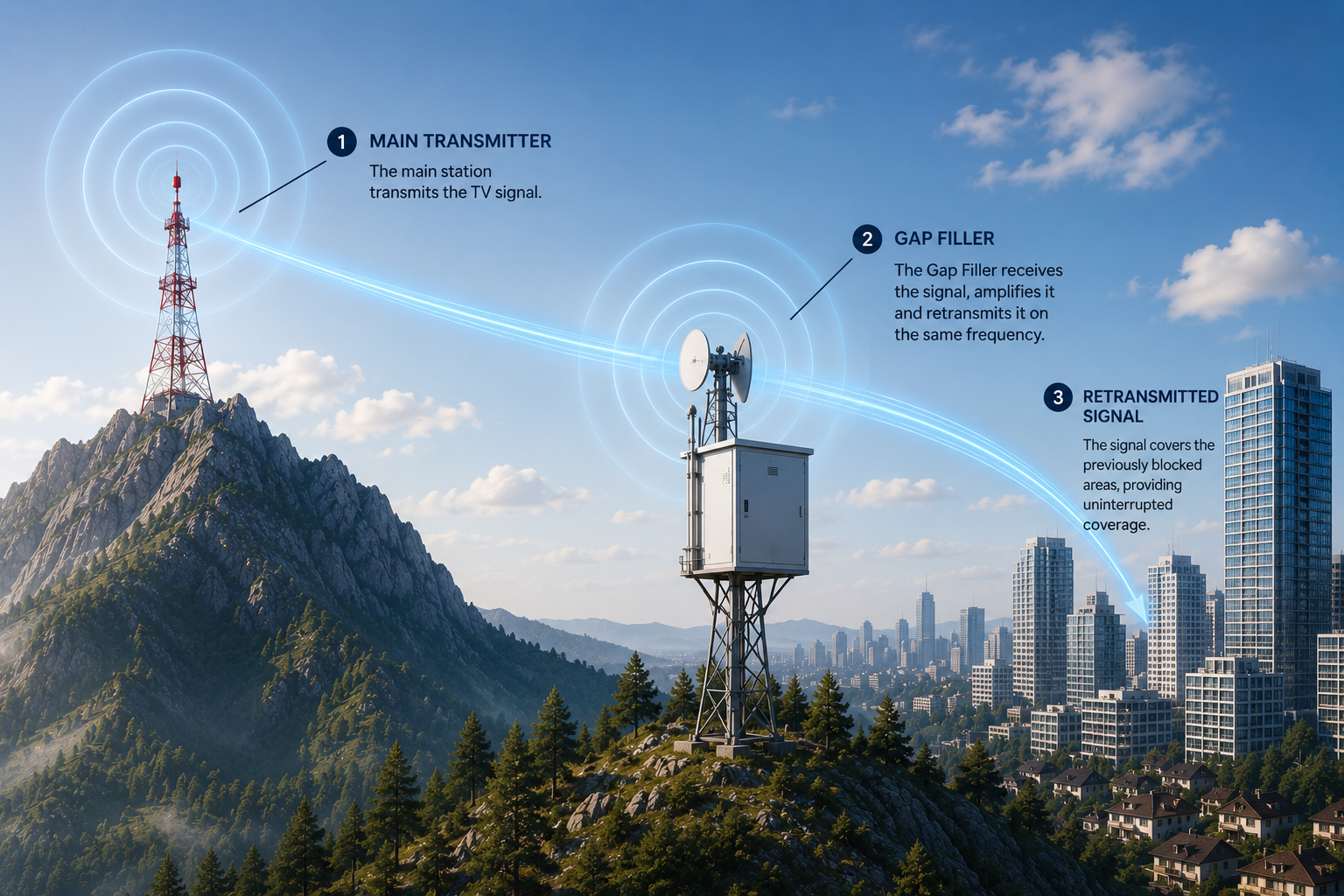

A Gap Filler receives the signal from the main transmitter, amplifies it and retransmits it on the same frequency — eliminating holes and offering uninterrupted coverage.
| Model | Type | Power |
|---|---|---|
| ITELCO MEX II | Gap Filler / Repeater | 10 / 25 W |
| ITELCO IEC | Gap Filler / Repeater | 50 / 100 / 200 W |
Why use the Itelco Gap Filler?
With the Itelco Gap Filler you save money and time: you simply receive the main station signal and retransmit it, with no need for separate radio, satellite or fiber links. It is a standalone, lightweight and energy-saving unit.

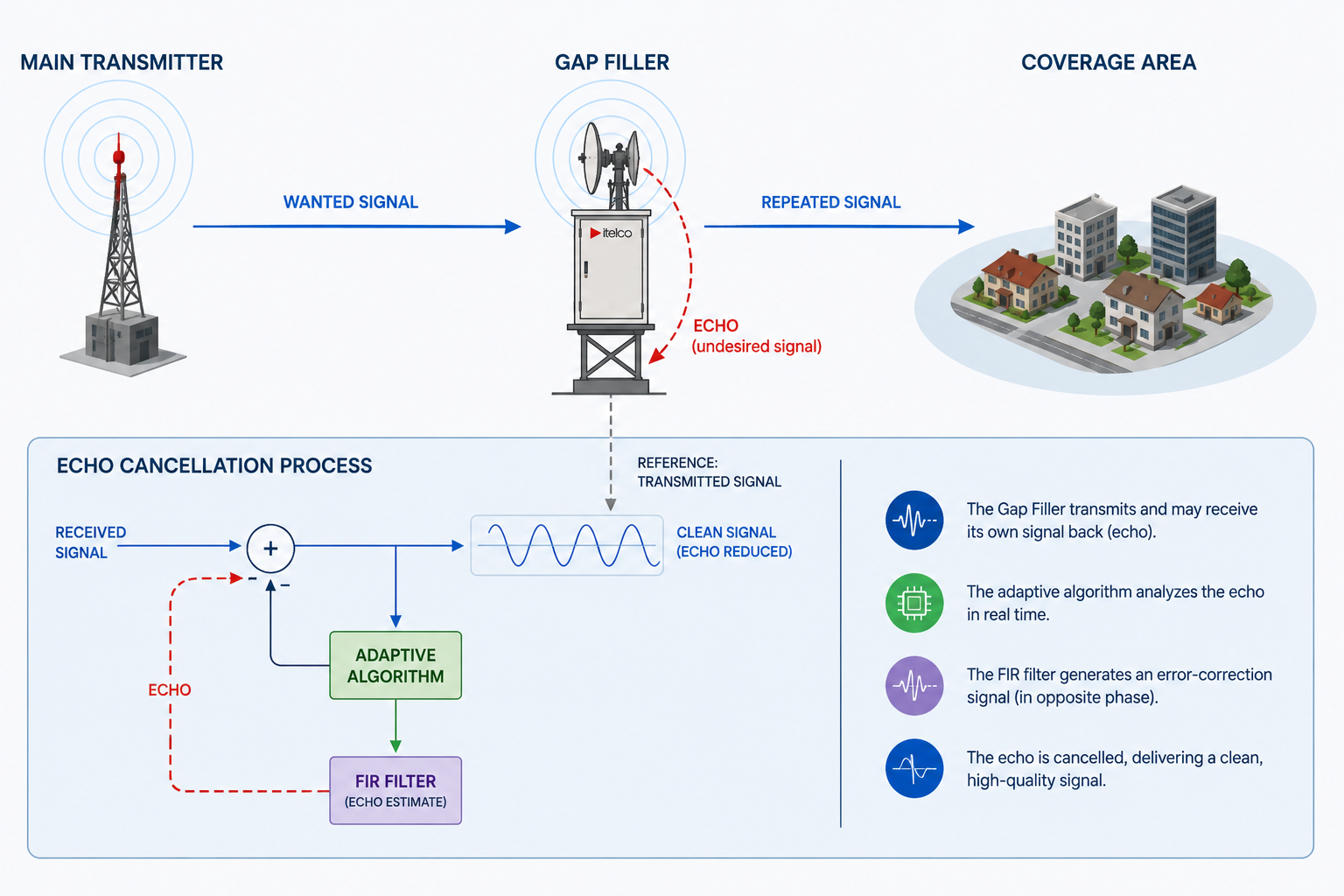

Echo cancellation
Since the Gap Filler transmits on the same frequency it receives, an "echo" from its own antenna can degrade the signal.
Our patented complex FIR system senses what the Gap Filler transmits, derives an error-correction term and applies it in real time to the received signal, in opposite phase — drastically reducing the echo for a high-quality transmission.
8 reasons to choose our Gap Filler
- Proven ProTelevision technology, working in real-field conditions.
- Input tracking filter: set the band and frequency, the Gap Filler does the rest.
- Selectable curve selectivity in case of adjacent-channel interference.
- The echo canceller responds in as little as 100 ms.
- Echo cancellation can exceed 50 dB.
- Extremely low process and group delay (critical for SFN networks).
- Works with every standard: DVB-T/T2, ISDB-T and ATSC 1 or 3.
- Selectable Gap Filler or Transposer mode.
Innovation and experience
Elenos Group's Gap Filler is the result of a massive engineering and testing program, including a test site with TerraCom in Sweden run for over a year under real-world conditions.
Many of our gap fillers are already in service in government and private networks, domestic and foreign, including Rai Way (Italy).
Would you like to learn more?
The Gap Filler is perfect for networks with minimum coverage obligations or small shady areas such as valleys or cities with tall buildings. Contact us for a custom Gap Filler solution.
