NORTHIA Liquid Cooled Transmitters
NORTHIA is the result of years long research in terms of size reduction, structural simplicity and competitive price. The line perfectly meets the needs of customers that require Medium / High Power solutions.
The qualities of compactness and redundancy have been applied to the design of the transmitter as well as of the cooling system.
The new line maintains the traditional safety features of Itelco transmitters and improves the ease of intervention by operators thanks to the extremely simple design.
High Power Reliability
Years of research delivering robust design for medium/high power broadcast solutions
Medium / High Power Range
2.5kW to 10kWrms DVB-T/H (up to 20kWps Analog) on single 19" rack
Advanced Cooling System
Liquid cooling with redundant pump system and heat exchanger for optimal thermal management
Modularity & Scalability

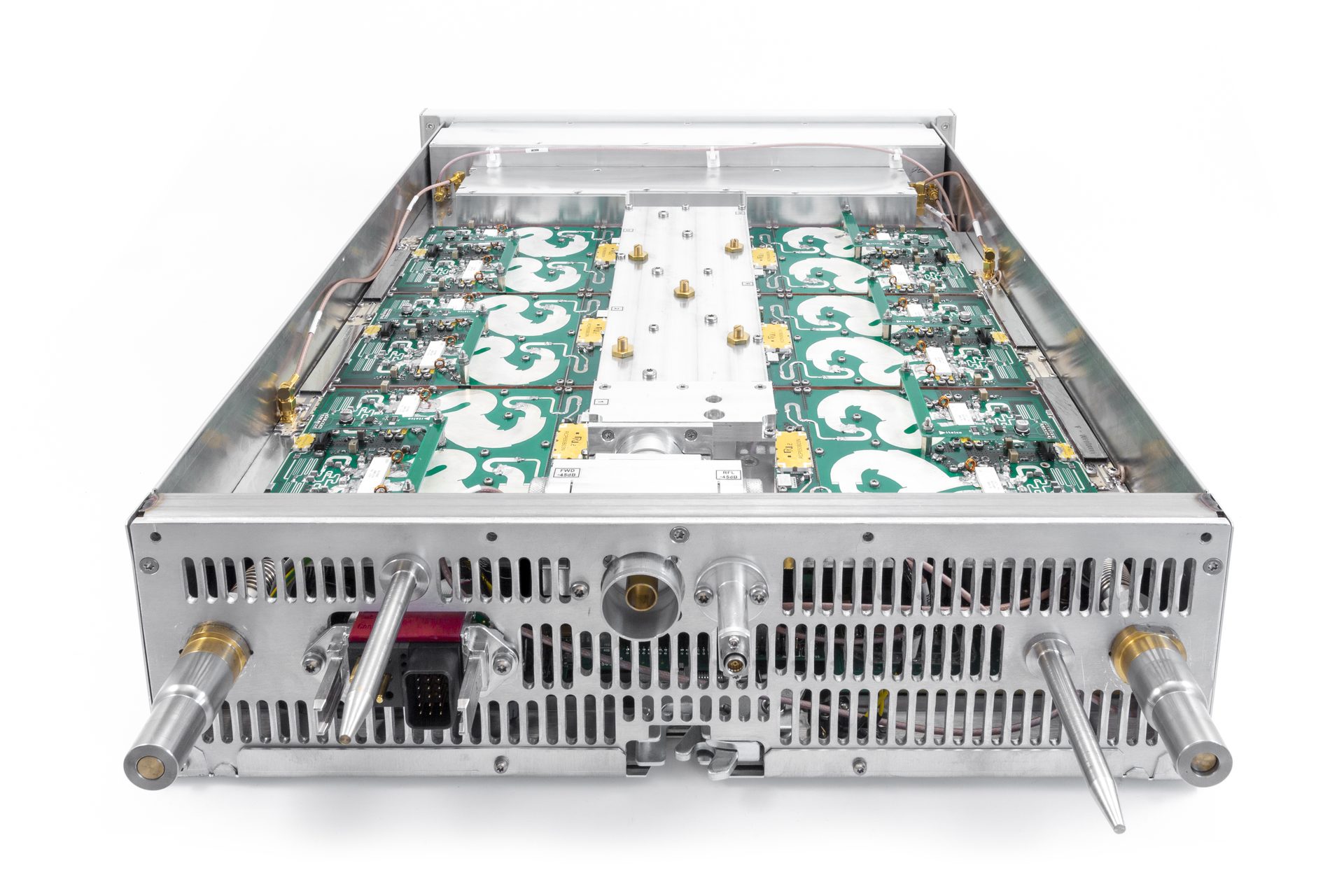

Hot-pluggable amplifier modules for flexible configuration and expansion capabilities
UHF Configurations
| Analog TV Output Power kWp.s. | DVB-T/H, DVB-T2, ISDB-T/Tb, ATSC 3.0, DTMB Output Power kWrms | ATSC Output Power kWrms | Number of Amplifier |
|---|---|---|---|
| 2.5 | 3.2 | 2 | |
| 7.5 | 3.7 | 4.8 | 3 |
| 10 | 5 | 6.4 | 4 |
| 15 | 7.5 | 9.6 | 6 |
| 20 | 10 | 12.8 | 8 |
VHF Configurations
| Analog TV Output Power kWp.s. | DVB-T/H, DVB-T2, ISDB-T/Tb, ATSC 3.0, DTMB Output Power kWrms | ATSC Output Power kWrms | DAB Output Power kWrms | Number of Amplifier |
|---|---|---|---|---|
| 5 | 2.4 | 3 | 3.4 | 2 |
| 10 | 4.8 | 6 | 6.7 | 4 |
| 15 | 7.2 | 9 | 10 | 6 |
| 20 | 9.6 | 12 | 13 | 8 |
